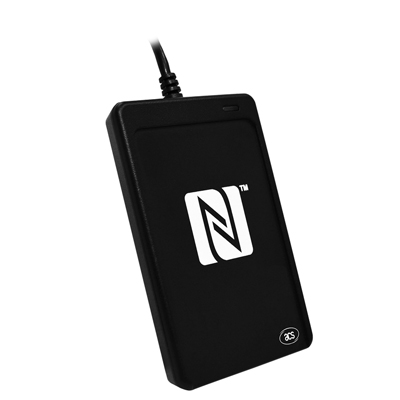

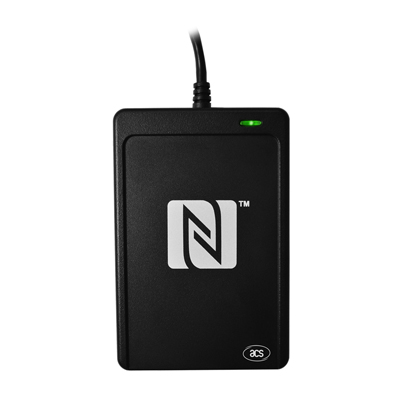

ACR1252U-M1
USB NFC Reader based on contactless technology
The ACR1252U USB NFC Reader III is an NFC Forum-certified PC-linked reader, developed based on 13.56Mhz contactless technology. It has a SAM (Secure Access Module) slot which can be used together with a SAM card for key diversification and mutual authentication, providing high-level security in contactless transactions. Post-deployment firmware upgrade is also supported, eliminating the need for additional hardware modification.

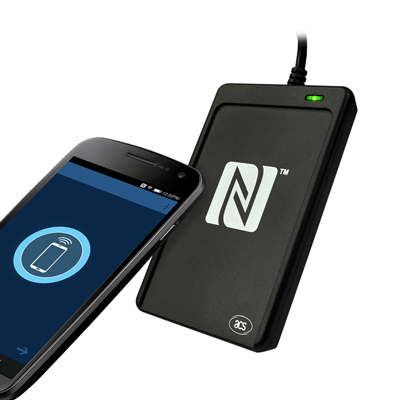

ACR1252U is capable of the three modes of NFC, namely: card reader/writer, card emulation and peer-to-peer communication. It supports ISO 14443 Type A and B cards, MIFARE®, FeliCa, and ISO 18092–compliant NFC tags. It also supports other NFC devices with an access speed of up to 424 Kbps and proximity operating distance of up to 50mm (depending on tag type used).
Compliant with both CCID and PC/SC, this plug-and-play USB NFC device allows interoperability with different devices and applications. It is thus ideal for unconventional marketing and advertising applications like smart posters.
The ACR1252U comes with an optional stand to hold the smart card reader at an optimal angle, so that users can tap contactless cards or NFC-enabled devices onto the ACR1252U with ease.
USB 2.0 Full Speed Interface
CCID Compliance
USB Firmware Upgradeability
Smart Card Reader:
Read/write speed up to 424 kbps
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
Supports MIFARE 7-byte UID, MIFARE Plus and MIFARE DESfire
Built-in anti-collision feature (only 1 tag is accessed at any time)
One ISO 7816–compliant SAM slot (Class A)
NFC Support:
NFC Reader/Writer Mode
Peer-to-Peer Mode
Card Emulation Mode
Application Programming Interface:
Supports PC/SC
Supports CT-API (through wrapper on top of PC/SC)
Peripherals:
User-controllable bi-color LED
User-controllable buzzer
SAM Slot
e-Government
Banking & Payment
e-Healthcare
Network Security
Access Control
e-Purse & Loyalty
Transportation
Smart Poster
P2P Communication
| Weight (g) | 81 g |
|---|---|
| Dimensions (mm) | 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H) |
| Power Source | From USB port |
|---|---|
| Protocol | USB CCID |
| Speed | USB Full Speed (12 Mbps) |
| Connector Type | Standard Type A |
| Cable Length | 1.0 m, Fixed |
| Protocol | ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL ISO18092, NFC Tags FeliCa |
|---|---|
| Standard | ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa |
| Protocol | T=0; T=1 |
|---|---|
| Number of Slots | 1 Standard SIM-sized Card Slot |
| Standard | ISO 7816 Class A (5V) |
| LED | 1 bi-color: Red and Green |
|---|---|
| Buzzer | Monotone |
| Firmware Upgrade | Supported |
|---|
| Certifications/Compliance | EN 60950/IEC 60950 ISO 18092 ISO 14443 ISO 7816 (SAM Slot) USB Full Speed PC/SC CCID NFC Forum Certification Mark Felica Performance Certification J-LIS (Japan) VCCI (Japan) MIC (Japan) KC (Korea) Microsoft® WHQL CE FCC RoHS 2 REACH |
|---|
| Device Driver Operating System Support | Windows® CE Windows® Linux® MAC OS® Solaris Android™ |
|---|
