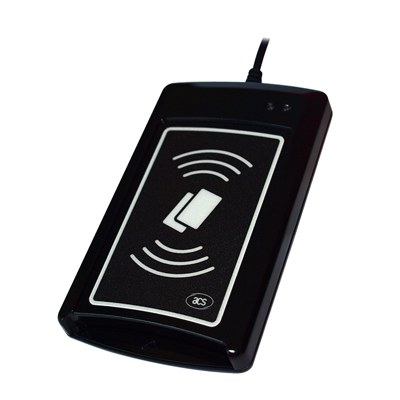

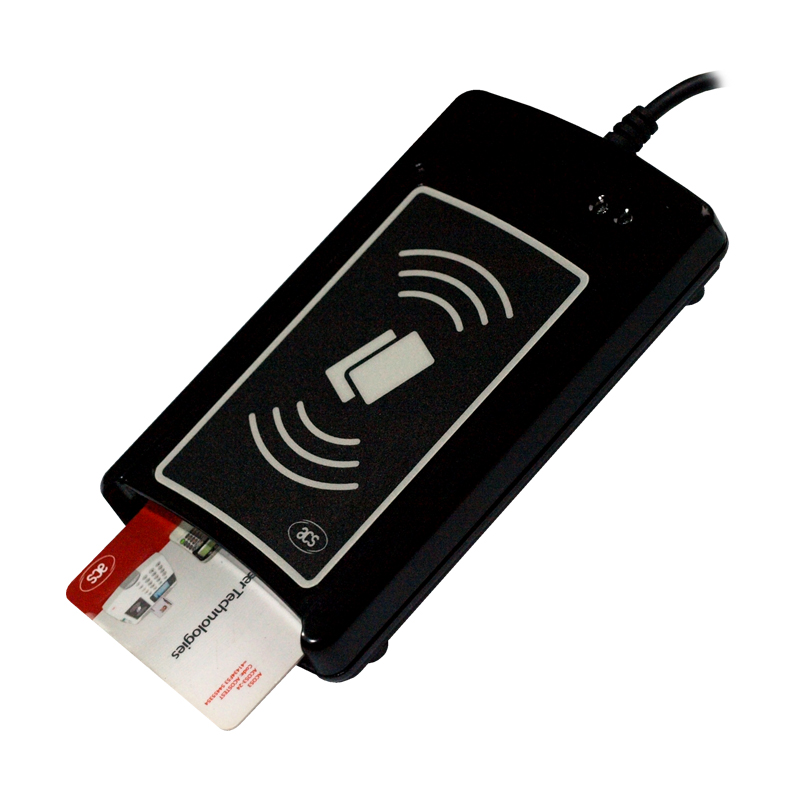

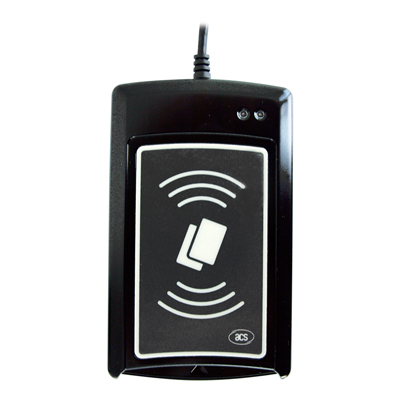

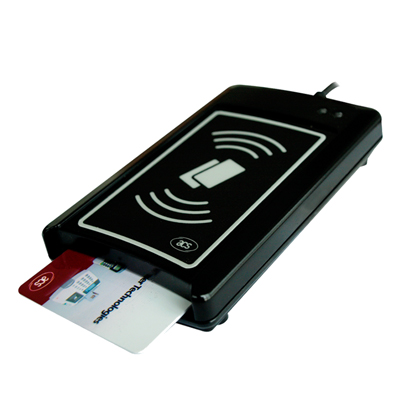

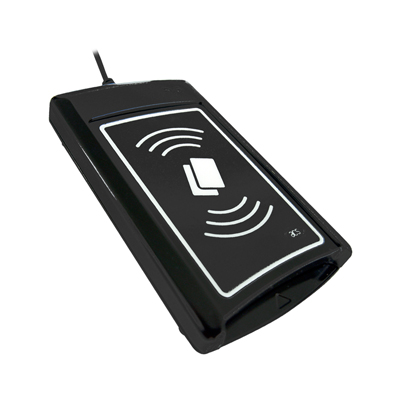

ACR1281U-C8
NFC smart Card Reader is a PC-linked contactless smart card reader
The ACR1281U-C8 is the new version of ACS’s ACR120U Contactless Smart Card Reader. The ACR1281U-C8 USB Protocol defines the interface between the PC and the reader, as well as the communication channel between the PC and the supported contactless cards, including Mifare®, ISO 14443 Type A and B compatible cards. By using the High Level APIs, the users can develop applications that involve the use of contactless cards with minimum effort. For example:
Access control, Identification: Reading the serial numbers of all cards in the field
Data Storage: Performing encrypted read and write operations
Ticketing: Performing read, write, increment and decrement operations in an encrypted environment
Multi applications: Performing read, write, increment and decrement operations on various sectors of the card
USB Full Speed (12 Mbps)
Read and write functionality
Smart Card Reader:
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm
Supports for ISO 14443 Type A and B cards, Mifare®
Built-in anti-collision feature (only one tag is accessed at any time)
Selective card polling capability (especially useful when multiple cards are presented)
Built-in Peripherals:
LED
Buzzer
Firmware Upgradability
Compliant with the following standards:
CE
FCC
RoHS
e-Government
Banking & Payment
Access Control
Network Security
e-Purse & Loyalty
Transportation
| Weight (g) | 140 g |
|---|---|
| Dimensions (mm) | 120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H) |
| Power Source | From USB port |
|---|---|
| Protocol | USB CCID |
| Speed | USB Full Speed (12 Mbps) |
| Connector Type | Standard Type A |
| Cable Length | 2.0 m, Fixed |
| Protocol | T=0; T=1 |
|---|---|
| Number of Slots | 1 Full-sized Card Slot |
| Standard | ISO 7816 Class A, B, C (5 V, 3 V, 1.8 V) |
| Protocol | ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL |
|---|---|
| Standard | ISO 14443 A & B Parts 1-4 |
| Protocol | T=0; T=1 |
|---|---|
| Number of Slots | 1 Standard SIM-sized Card Slot |
| Standard | ISO 7816 Class A (5 V) |
| LED | 2 single-color: Red and Green |
|---|---|
| Buzzer | Monotone |
| Firmware Upgrade | Supported |
|---|
| Certifications/Compliance | ISO 14443 ISO 7816 USB Full Speed PC/SC CCID Microsoft® WHQL CE FCC RoHS 2 REACH |
|---|
| Device Driver Operating System Support | Windows® Linux® MAC OS® Solaris Android™ |
|---|
