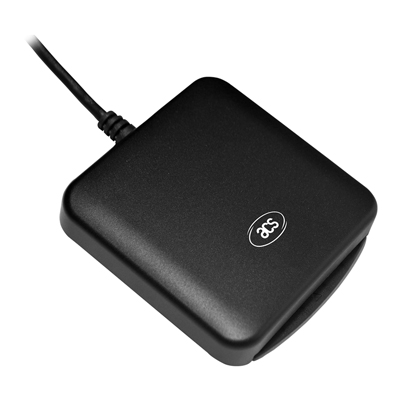

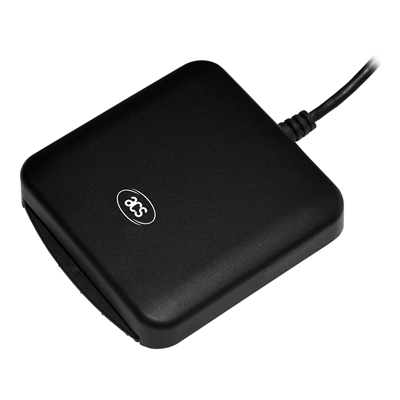

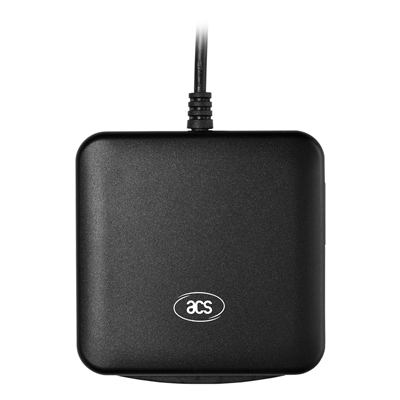

ACR39U
Compact smart card reader made from new and modern technology
ACR39U Smart Card Reader ushers in new and modern technology to the world of smart card readers. This compact smart card reader brings together sophisticated technology and modern design to meet rigorous requirements of smart card–based applications.
It also features a USB Full Speed interface and a smart card read/write speed of up to 600 Kbps. Highly durable, ACR39U can last for 100,000 card insertion cycles. ACR39U also has various certifications, such as EMV 2000 Level 1 and PBOC, making it the ideal smart card reader for your e-Banking and e-Payment application needs
It is fully compliant with PC/SC and CCID specifications, and supports various operating systems such as Windows, Linux and Mac. Additionally, ACR39U may be used on mobile devices running on the Android™ platform versions 3.1 and above.
With its sleek, stylish design and powerful core, the ACR39U is the ideal peripheral for your smart card applications.
Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) cards
Supports microprocessor cards with T=0 or T=1 protocol
Supports memory cards such as:
Cards following the I2C bus protocol (free memory cards) with maximum 128 bytes page with capability, including:
Atmel®: AT24C01/02/04/08/16/32/64/128/256/512/1024
SGS-Thomson: ST14C02C, ST14C04C
Gemplus: GFM1K, GFM2K, GFM4K, GFM8K
Cards with intelligent 1k bytes EEPROM with write-protect function, including:
Infineon®: SLE4418, SLE4428, SLE5518 and SLE5528
Cards with intelligent 256 bytes EEPROM with write-protect function, including:
Infineon®: SLE4432, SLE4442, SLE5532 and SLE5542
Supports PPS (Protocol and Parameters Selection)
Features Short Circuit Protection
Application Programming Interface:
Supports PC/SC
Supports CT-API (through wrapper on top of PC/SC)
e-Government
Banking & Payment
e-Healthcare
Access Control
Network Security
Public Key Infrastructure
e-Purse & Loyalty
| Weight (g) | 60.0 g |
|---|---|
| Dimensions (mm) | 72.2 mm (L) x 69.0 mm (W) x 14.5 mm (H) |
| Power Source | From USB port |
|---|---|
| Protocol | USB CCID |
| Speed | USB Full Speed (12 Mbps) |
| Connector Type | Standard Type A |
| Cable Length | 1.5 m, Fixed |
| Others | CAC, PIV, SIPRNET, J-LIS Smart Cards |
|---|---|
| Protocol | T=0; T=1; Memory Card Support |
| Number of Slots | 1 Full-sized Card Slot |
| Standard | ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V) |
| Certifications/Compliance | EN 60950/IEC 60950 ISO 7816 USB Full Speed PC/SC CCID EMV Level 1 (Contact) J-LIS (Japan) PBOC TAA (US) VCCI (Japan) Microsoft® WHQL CE FCC WEEE RoHS 2 REACH |
|---|
| Device Driver Operating System Support | Windows® Linux® MAC OS® Solaris Android™ |
|---|
