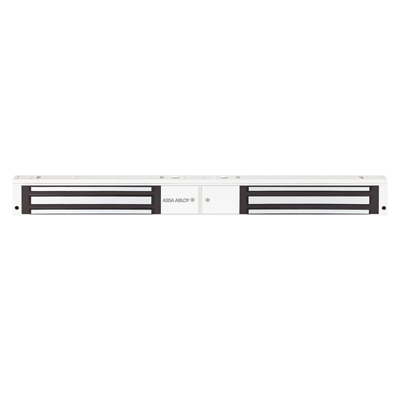

Double Leaf Electromagnetic Locking
Elegant and safe Double Leaf Electromagnetic Locking for door access control system
The Electromagnetic Locks operate with holding forces from 500 kgup to 560kg.
Covering a range of applications these magnets are ideal for applications from access ways through to high use commercial swing doors. With fixing options including wood, aluminium and steel constructions as well as glass door applications, the range caters to most electromagnetic needs.
Fail-Safe: unlocks when power is removed
Easy installation: suitable for both new and retrofit usage
High holding force: refer to the technical data overleaf
Self-alignment: armature plate pivots to accommodate door drop
Silent operation: no humming or buzzing
Dual voltage: site selectable 12 or 24 Vdc
Instantaneous release: smart electronics on the electromagnets eliminate residual magnetism
3 Year ASSA ABLOY Warranty
Aluminium doors
Double swing doors
Access control
Surface mount for inswing and outswing doors
| Monitored | Dual Monitored | |
|---|---|---|
| Holding Force | 500-560 Kg | 550-560 Kg |
| Dimensions | (L)500 x (H)47 x (D) 26mm | (L)500 x (H)47 x (D) 26 mm |
| Voltage | 12Vdc/24Vdc +/- 10% | 12Vdc/24Vdc +/- 10% |
| Current | 900mA @ (12Vdc) 450mA @ (24Vdc) | 900mA @ (12Vdc) 450mA @ (24Vdc) |
| Monitoring | Hall-Effect | Hall-Effect & Reed Switch |
| Operating Temperature | -10 to 55 Degrees | -10 to 55 Degrees |
| Operating Humidity | 0-90% | 0-90% |
