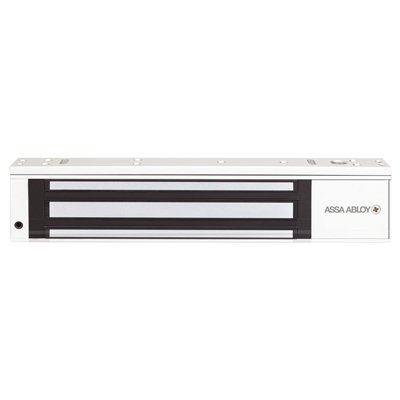

Single Leaf Electromagnetic Locking
Elegant and safe Single Leaf Electromagnetic Locking for door access control system
The Single Series Electromagnetic Locks operate with holding forces from 250kg up to 280kg. Covering a range of applications the A4 Electromagnets are ideal for applications from cupboard doors through to high use commercial swing doors.
With fixing options including wood, aluminium and steel constructions as well as glass door applications, the range caters to most electromagnetic needs.
Fail-Safe: unlocks when power is removed
Easy installation: suitable for both new and retrofit usage
High holding force: refer to the technical data overleaf
Self-alignment: armature plate pivots to accommodate door drop
Silent operation: no humming or buzzing
Dual voltage: site selectable 12 or 24 Vdc
Instantaneous release: smart electronics on the A Series Electromagnets eliminate residual magnetism
3 Year ASSA ABLOY Warranty
Aluminium doors
Glass doors
IT storage rooms
Access control
Surface mount for inward and outward swinging doors
| Monitored | Dual Monitored | |
|---|---|---|
| Holding Force | 250-280 Kg | 250-280 Kg |
| Dimensions | (L)250 x (H)47 x (D) 26mm | (L)250 x (H)47 x (D) 26 mm |
| Voltage | 12Vdc/24Vdc +/- 10% | 12Vdc/24Vdc +/- 10% |
| Current | 450mA @ (12Vdc) 225mA @ (24Vdc) | 450mA @ (12Vdc) 225mA @ (24Vdc) |
| Monitoring | Hall-Effect | Hall-Effect & Reed Switch |
| Operating Temperature | -10 to 55 Degrees | -10 to 55 Degrees |
| Operating Humidity | 0-90% | 0-90% |
