The basic system panel ACW2-XN has capacity for 2 (two) doors / 1000 users. It can be easily extended to accommodate up to 8 (eight) doors with additional module AW2 Expansion Unit (sold separately) and door also readers (sold separately). The system automatically recognizes the additional equipment and the built-in wizards that will help guide you through the configuration process. This results in a significantly lower cost of ownership and minimal disruption to the business.

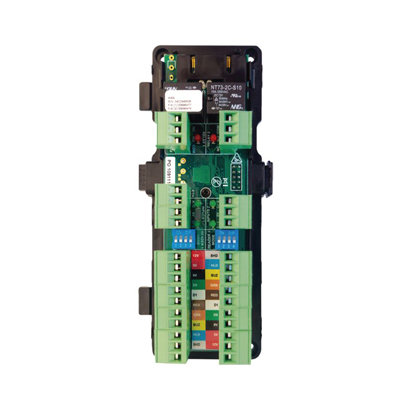

The wiegand module of expansion of two AW2 readers, provides support for two additional doors. Up to three modules can be added to the base system for a maximum of up to eight doors.
The AW2 expansion modules are plug and play, which facilitates their incorporation into the system.
Due to its capacity for expansion, ACW2-XN is ideal for offices, stores, small hotels and establishments such as pensions, factories, and much more.
Each additional module AW2 has capacity for up to 2 additional readers.
ACW2-XN capacity ranges from 2 to 8 readers (installing expansion modules)
Easily installable
| TCP/IP (10/100) : | N |
|---|---|
| RS485 : | N |
| Wiegand in : | 2 |
|---|---|
| 12 VDC Out : | 2 |
| TTL Input (REX) : | 2 |
|---|---|
| Supervised Inputs (DPS) : | 2 |
| Relay : | 2 |
| Operation Temperature : | -13 to +140 F |
|---|---|
| Storage Temperature : | -400 to +1760 F |
| Operating Humidity : | 0% to 75 % |
| Environmental rating : | N/A |
| Input Voltage : | 12 to 15 VDC |
|---|---|
| Power Requirements : | Current 37mA Power : 0.44W |
| Power Input Protection : | Reverse Polarity Protections. Over-current Protection |
| Dimensions (D/W/H) : | 16.15 cm x 7.1 cm x 3.6 cm |
|---|---|
| Weight : | 500 g |
