BioWeb B3
$81.00 $101.00

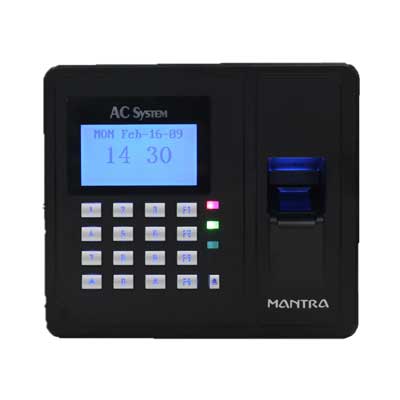

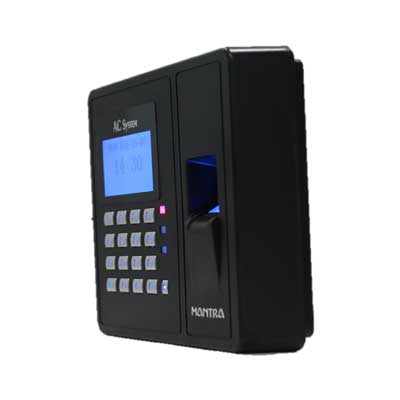

Web Enabled Attendance & Access Control terminal
BIOWEB B3 is a single door biometric reader controller which design with Web Server to help system operator to configure, manage thier own fingerprint access control system. Ideally, BIOWEB B3 is used to manage single entrance security, or for a small enterprise as a simple time attendance recorder with Fingerprint security or RFID card, Password as a 3-in-1 access control system.
Body
| Display | 2.8" Blue TFT Screen |
|---|---|
| Battery | NA |
Functionality
| Fingerprint Capacity | 1000 (3000 optional) |
|---|---|
| ID Card Capacity | 20000 |
| Record Capacity | 51968 |
| Card Type | Proximity card |
| Identify mode | Finger, Card |
| LED Indicator | 3 LED Status (Blue, Green, Red) |
| Voice Prompt | Optional |
| Identification Time | < 0.8 sec |
| Keypad Type | Numeric Keys |
| Wiegand/RS485 Interface | RS485, Wiegand Input & Output 26/34 bit |
Technicle Specification
| Fingerprint scanner type | 500 DPI Optical Sensor |
|---|---|
| Communication | TCP/IP |
| Push Data technology | Yes (LOGs data real time PUSH) |
| FRR | 0.001 |
| FAR | 1.0E-6 |
| Operation Humidity | 20% ~ 80% |
| Operation Temperature | 10° C ~ 65° C |
| Power | DC 9 ~ 24V 2A |
| Finger placement angle | 360° rotation allowed |
| Software | PayTime / Minop |
Accessories

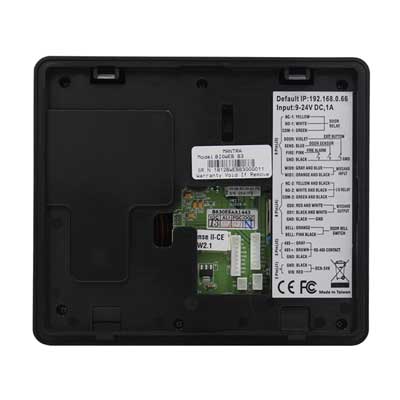

| Wiring Connections | External Card Reader, Electric Lock, Exit Button, Door Sensor, Fire Alarm, Bell |
|---|
Misc.
| Special Feature | Built-in http server |
|---|---|
| Anti-Pass Back | Yes |
Get the latest downloads includes software & drivers upgrades.
Download Drivers
