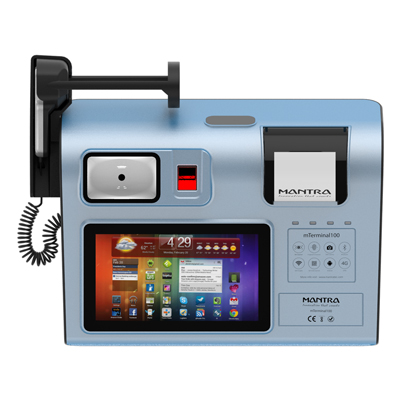

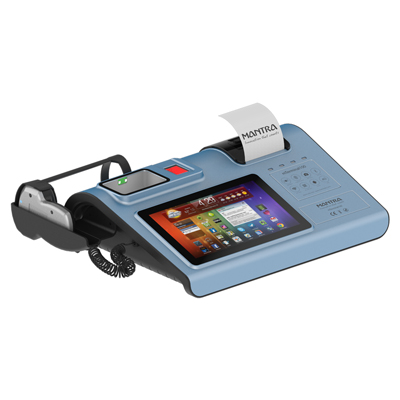

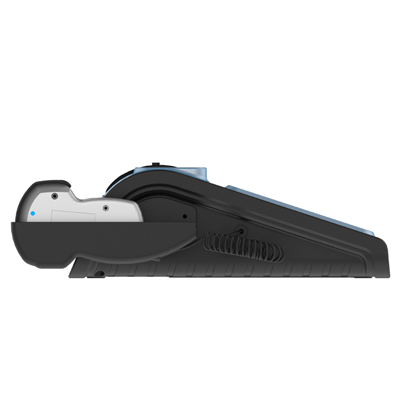

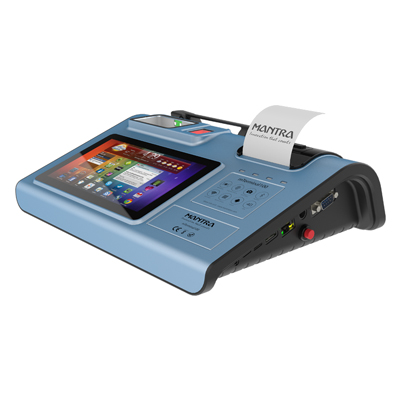

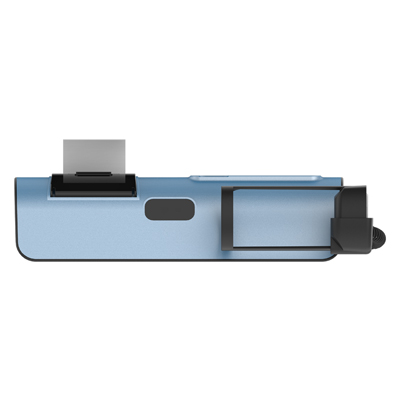

mTerminal100

IRIS & Fingerprint Biometric POS Machine

$81.00 $101.00

Mantra mTerminal100 IRIS & Fingerprint Biometric POS Machine is an all-in-one, affordable, Mobile terminal consisting of various Biometrics Technology.

A contemporary aesthetic that blends perfectly with modern architecture

1 GHz Dual Core ARM processor

Support STQC/Aadhaar Certified Fingerprint, IRIS reader

Dual GSM/LTE Sim Slot and Supports GPRS/3G/4G and WiFi Interface

Inquiry

Mantra mTerminal 100 is an IRIS and fingerprint POS machine that is developed based on the latest biometric technology. The Biometric POS machine mTerminal100 makes the payment process relatively faster and accurate.

This innovative Biometric Handheld Terminal will dramatically improve Bank's ability to serve unbanked users from rural areas in online & offline mode. mTerminal100 is equipped with classy Remote Management Application so that the Administrator has access to all the device activity in online real time mode, for example, Battery status, Health of the device, Log In & Out activity, Transaction logs and Management Logs.

Support STQC/Aadhaar Certified Fingerprint, IRIS Reader

8GB Flash for Storage of Fingerprint Templates / Photos with Transactions

3G/4G/GPS/Bluetooth/ WIFI Connectivity

Quad Core Processor & Android OS

Online/Offline Software Makes Individual Operation Easy to Manage

Inbuilt Battery Backup to Ensure 99.9% Uptime

Data Retention in Case of Power Failure, No Loss of Data

Contemporary Aesthetic that Blends Perfectly with Modern Architecture

Easy Integration

De-clutter cash counter

Makes Reconciliation easy

Web -based time reporting tool

Handheld EDC mobility

Pay by Card, Swiftly & Securely

Tablet
Display 7” IPS LCD, 1024 X 600 Resolution, Multi Touch Capacitive Touch Screen With Tuffen Glass
Processor 1 GHz Quad Core ARM Processor
RAM 1 GB
Inbuilt Storage 8 GB Flash Memory
Expansion Slot Micro SD Slot Supporting up to 32 GB Memory Card
Audio Good Quality Speaker - 1W Speaker
Connectivity Dual 4G/3G/2G Micro SIM Slot, WiFi Interface & Bluetooth
GPS Supports GPS and AGPS
USB Ports Micro USB OTG as Debug Port, Additional USB2.0 Slave Port
Battery Swappable & Rechargeable 10,000mAH Li-ion/Li-Polymer Battery
Camera 5MP Auto-Focus Camera for Reading QR Code and 2D Barcode, 2MP Front Camera (Optional)
Indicators Status Indicator Provides Ease of Use. Indicators are for Better Connectivity (Presence/Absence), Signal Strength, Battery Status etc.
SAM Slot SAM Slot to Secure Loading of Applications
Certification CE, RoHS, BIS IS13252 (Part 1)
Ethernet 10/100 Mbps Supported RJ-45 Interface
Other Interface RS232, Relay with Non Potential Contacts
Operating System Android
Power On/Off External Power On/Off Button
DC Power Separate DC Jack for Power Input
Power Adapter Power Adapter with Surge Protection
External Keyboard Support Device Can Support Keyboard Through USB or Bluetooth Interface
IRIS Scanner
Spatial Resolution > 50% @ 1.0 LP/mm
Pixel Resolution > 10 Pixels/mm
Image Margins Left & Right >=0.6x IRIS Radius
Top & Bottom >=0.2x IRIS Radius
Imaging Wavelength 700-900 nm
Pixel Depth 8 Bits/Pixel
Certification Mantra MIS100V2 STQC/UIDAI Certified IRIS Sensor
Fingerprint Scanner
Fingerprint Sensor Optical (Scratch Free Sensor Surface)
Image Resolution 500 DPI / 256 Gray
Sensing Area 16 x 18 mm
FAP FAP10
Certification Mantra MFS100 STQC/UIDAI Certified Fingerprint Sensor
Thermal Printer
Printing Speed 70mm/s
Effective Printing Width 48mm
Style Black and White
Printer Integrated 2" Thermal Printer
