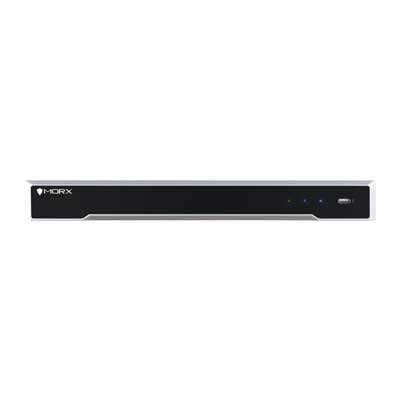

Its the good recording devices for IP video surveillance cameras and belongs to the digital (IP) group. 16 cameras - so many cameras can be connected to it. This NVR from Morx supports several recording modes at different image resolutions.A picture of 1080p, in real time the recorder can record 16 cameras, and in 720p mode - 16 cameras, well, in analog quality - 16 cameras. On the case of the VGA dashcam there is an HDMI output, which makes it possible to connect an external monitor or TV. A very important factor when choosing a NVR is the number of hard drives for recording video currently its come with 2 HDDs . It is also very convenient when installing a video surveillance system that it has PoE outputs, in simple words, it is power transmission for twisted pair video cameras. It is worth paying attention to the maximum recording speed of frames per second on the system in the popular 720p or 1.3MP mode, and this!
Professional and Reliable
New Logical and Visualized GUI Design
Dual-OS Design to Ensure High Reliability of System Running
ANR Technology to Enhance the Storage Reliability When the Network is Disconnected
Video Input and Transmission
Up to 16-ch 12 MP IP Cameras can be Connected
Connectable to the Third-Party Network Cameras
Compression and Recording
H.265+ Compression Effectively Reduces the Storage Space and Costs up to 75%
Full Channel Recording at up to 12MP Resolution
HD Video Output
HDMI and VGA Independent Outputs Provided
HDMI Video Output at up to 4K (3840 × 2160) Resolution
Storage and Playback
Up to 2 SATA Interfaces for HDD Connection
Smart Search for Efficient Video Playback
16-ch Synchronous Playback at up to 1080p Resolution
Normal/Important/Custom Video Playback
Important Files Management
HDD Health Monitoring
Smart &POS Function
Supports Multiple VCA (Video Content Analytics) Events
Smart Search for the Selected Area in the Video; and Smart Playback to Improve the Playback Efficiency
Supports VCA Search for Fire/Ship/Temperature/Temperature Difference Detection Triggered Video Files
POS Information Overlay on Live View and Playback
POS Triggered Recording and Alarm
Network & Ethernet Access
Morx-Connect for Easy Network Management
Gigabit Ethernet Network Interface
16 Independent PoE Network Interfaces are Provided
Long Distance (100-300 m) Network Transmission via PoE
| IP Video Input | 16-ch |
|---|---|
| Up to 12 MP Resolution | |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Incoming Bandwidth | 160 Mbps |
|---|---|
| Outgoing Bandwidth | 256 Mbps |
| Remote Connection | 128 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| CVBS Output (Optional) | 1-ch, BNC (1.0 Vp-p, 75 Ω), Resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDMI Output Resolution | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output Resolution | 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ)) |
| Decoding Format | H.265/H.265+/H.264/H.264+/MPEG4 |
|---|---|
| Live View/Playback Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p /VGA/4CIF / DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| Capability | 2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps) |
| Network Protocols | TCP/IP, DHCP, Morx-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
|---|
| SATA | 2 SATA Interfaces |
|---|---|
| Capacity | Up to 8TB Capacity for Each HDD |
| Network Interface | 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
|---|---|
| USB Interface | Front Panel: 1 × USB 2.0; Rear Panel: 1 × USB 3.0 |
| Alarm in/out | 4/1 |
| Interface | 16 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interfaces |
|---|---|
| Power | ≤ 200 w |
| Supported Standard | IEEE 802.3 af/at |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
|---|---|
| Power | ≤ 280 w |
| Consumption(Without Hard Disk) | ≤ 15 w (without enabling poe) |
| Working Temperature | -10 to +55º C (+14 to +131º F) |
| Working Humidity | 10 to 90 % |
| Chassis | 385 mm Chassis |
| Dimensions (W × D × H) | 385 × 315× 52 mm (15.2" × 12.4" × 2.0") |
| Weight (Without Hard Disk) | ≤ 3 kg (6.6 lb) |
