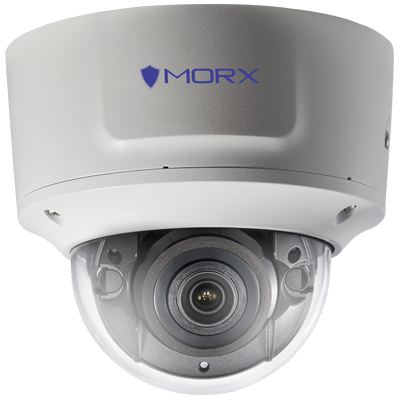

It is an 4MP varifocal indoor dome camera with a 2.8 - 12mm motorized lens and a 1/3 progressive scan CMOS chip.
With H.265+ compression, users get a huge saving on bandwidth and storage usage compared to previous H.264 compression. This is supported by the on-board Micro SD/SDHC/SDXC allowing up to an extra 128GB of storage. This camera comes with an IR range of up to 30m and a working temperature of -30°C to 60°C, making it perfect for indoor environments. It also has an angle adjustment, panoramic - 0° to 355°, rotate - 0° to 355° and tilt - 0° to 75°.It is powered by either 12V DC power supply or PoE.
1/3" Progressive Scan CMOS
2688 × 1520 @30fps
2.8 to 12 mm Motorized VF Lens
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
H.265+, H.265, H.264+, H.264
Three Streams
120dB WDR
2 Behaviour Analysis, Face Detection
BLC/3D DNR/ROI/HLC
IP67, IK10
Built-in Micro SD/SDHC/SDXC Card Slot, up to 128 GB
3-Axis Adjustment
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Auto-IRIS | No |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120dB |
| 3-Axis Adjustment | Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
| Focal Length | 2.8 to 12 mm Motorized VF Lens |
|---|---|
| Aperture | F1.6 |
| Focus | Auto |
| FOV | Horizontal FOV: 104° to 29° Vertical FOV: 55° to 17° Diagonal FOV: 125° to 34° |
| Lens Mount | ф14 |
| IR Range | Up to 30 m |
|---|---|
| Wavelength | 850nm |
| Video Compression | Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264 |
|---|---|
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supports |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supports |
| Video Bit Rate | 256 Kbps to 16 Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Behaviour Analysis | Line Crossing Detection, Intrusion Detection |
|---|---|
| Face Detection | Yes |
| Region of Interest | 1 Fixed Region for Main Stream and Sub-Stream |
| Max. Resolution | 2688 × 1520 |
|---|---|
| Main Stream | 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) |
| Sub-Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness Adjustable by Client Software or Web Browser |
| Target Cropping | No |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm in |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), Local Storage and NAS (NFS,SMB/CIFS), ANR |
|---|---|
| Alarm Trigger | Motion Detection, Video Tampering, Network Disconnected, IP Address Conict, Illegal Login, HDD Full, HDD Error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function | One-key Reset, Anti-Flicker, Three Streams, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter |
| Firmware Version | V5.5.52 |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 Channels |
| User/Host | Up to 32 Users 3 Levels: Administrator, Operator and User |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Audio | 1 Input (Line in/Mic.in, 3.5 mm), 1 Output (Line out, 3.5 mm), Mono Sound |
|---|---|
| Communication Interface | 1 RJ45 10M/100M Self-Adaptive Ethernet Port |
| Alarm | 1 Input, 1 Output (max. 12 VDC, 30 mA), Terminal Block |
| Video Output | 1Vp-p Composite Output(75Ω/BNC) (For Adjustment Only) |
| On-Board Storage | Built-in Micro SD/SDHC/SDXC Slot, up to 128 GB |
| SVC | H.264 and H.265 Encoding |
| Reset Button | Yes |
| Environment Noise Filtering | Yes |
|---|---|
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or Less (Non-Condensing) |
|---|---|
| Power Supply | 12 VDC ± 25%, Terminal Block PoE (802.3af, Class 3) |
| Power Consumption and Current | 12 VDC, 0.8A, Max. 10W PoE (802.3af, 37V to 57V), 0.35A to 0.2A, Max. 12W |
| Protection Level | IP67, Ik10 TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material | Metal |
| Dimensions | ф 153.4 × 133.1 mm (ф 6.0" × 5.2") |
| Weight | Camera: Approx. 1330 g (2.9 lb.) With Package: Approx. 1800 g (4.0 lb.) |
