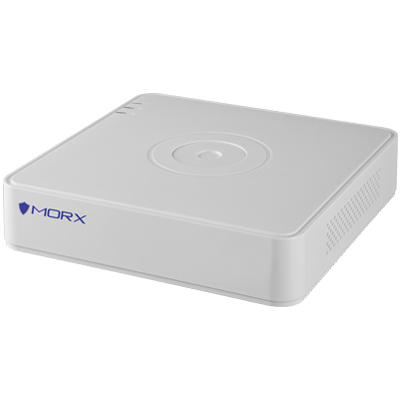

It is an excellent quality recorder designed for connecting and recording from 16 Analog cameras in a resolution of up to 1080 lite.
The Morx DVR is a 4-in-1 digital video recorder which supports normal analogue, TVI, CVI, AHD. Compatibility with four of the most popular CCTV technologies makes Morx recorders one of the most versatile in the market.
Power consumption excluding hard drive does not exceed 8 watts.
Video Input and Transmission
Connectable to HD/AHD/CVBS Signal Input
Long Distance Transmission Over UTP and Coaxial Cable
Compression and Recording
One-key Enable H.264+ Compression to Improve Encoding Efficiency by up to 50% and Reduce Data
Storage Costs
Supports 1080p Lite of all Channels and When Enabled, the Image Effect is Similar with 1080p
Video Output
HDMI/VGA Output at up to 1920 × 1080 Resolution
Storage and Playback
One SATA Interface (up to 6 TB Capacity Per HDD)
4/8/16-ch Synchronous Playback
Smart Search for Efficient Playback
Smart Function
VQD (Video Quality Diagnostics)
Unlock Pattern for Device Login for the Admin and Clear-Text Password Available
GUID File can be Exported for Password Resetting and Imported for Finding the Forgotten Password
Supports PTZ Control via Omnicast VMS of Genetec Protocol
Network & Ethernet Access
Morx-Connect & DDNS (Dynamic Domain Name System) for Easy Network Management
One Self-Adaptive 10/100 Mbps Network Interface
Output Bandwidth Limit Configurable
| Video Compression | H.264+/H.264 |
|---|---|
| Analog Video Input | 16-ch |
| BNC Interface (1.0 Vp-p, 75 Ω), Supporting Coaxitron Connection | |
| Turbo HD Input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | Support |
| Audio Compression | G.711u |
| Audio Input/ Two-Way Audio Input | 1-ch ,RCA (2.0 Vp-p, 1 KΩ) |
| HDMI/VGA Output | 1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|---|---|
| Encoding Resolution | When 1080p Lite Mode not Enabled: 720p/WD1/4CIF/VGA/CIF When 1080p Lite Mode Enabled: 1080p Lite/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main Stream: When 1080p Lite Mode Not Enabled: For 720p Stream Access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite Mode Enabled: 1080p Lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
| Sub-Stream: 4CIF/2CIF@6fps; CIF/QVGA/QCIF@25fps (P)/30fps (N) | |
| Video Bit Rate | 32 Kbps to 4 Mbps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Bit Rate | 64 Kbps |
| Dual Stream | Support |
| Stream Type | Video, Video & Audio |
| Synchronous Playback | 16-ch |
| Remote Connections | 128 |
|---|---|
| Network Protocols | TCP/IP, PPPoE, DHCP, Morx-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| SATA | 1 SATA Interface |
|---|---|
| Capacity | Up to 6 TB Capacity for Each Disk |
| Network Interface | 1, RJ45 10M/100M Self-Adaptive Ethernet Interface |
|---|---|
| USB Interface | Rear Panel: 2 × USB 2.0 |
| Power Supply | 12 VDC |
|---|---|
| Consumption (Without HDD) | ≤ 20 W |
| Working Temperature | -10 ºC to +55 ºC (14 ºF to 131 ºF) |
| Working Humidity | 10% to 90% |
| Dimensions (W × D × H) | 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 Inch) |
| Weight (Without HDD) | ≤ 1.2 kg (2.6 lb) |
