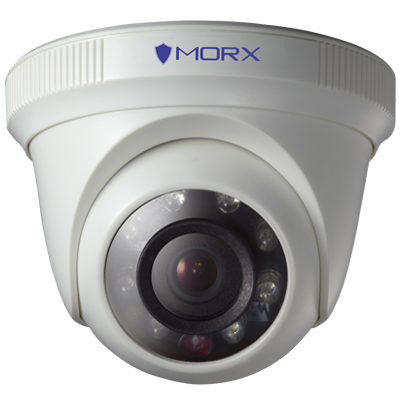

Morx MX TE1F Camera is enabled with color Infrared and it has 720P resolution through 1 Megapixel High Performance CMOS for beautiful HD images,it transmit signals with coaxial cables, with Uncompressed images and, also the real-time motion picture with no latency. It caputers Image with the size 1280 (H) x720 (V) and has great feature like 3D anti-noise DNR, anti-reverse digital and light balancer.With its multiple LEDs and intelligent IR, the camera is able to automatically adjust its shutter speed to the scene and produce clear image under low-light conditions. It is weather proof and also able to work in environments with temperatures ranging from -40°C (104°F) to 60°C (140°F) Humidity: 90% or Less (Non-Condensation).
1 Megapixel High Performance CMOS
Analog HD Output, 720p Resolution
Day/Night Switch
DNR
Smart IR
Up to 20 m IR Distance
Switchable TVI/AHD/CVI/CVBS
| Image Sensor | 1 MP CMOS Image Sensor |
|---|---|
| Signal System | PAL/NTSC |
| Effective Pixels | 1296 (H) × 732 (V) |
| Min. Illumination | 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25 (1/30) s to 1/50,000 s |
| Lens | 2.8 mm, 3.6 mm, 6 mm Optional Field of View: 70.9°(3.6 mm), 92°(2.8 mm), 56.7°(6 mm) |
| Lens Mount | M12 |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Synchronization | Internal Synchronization |
| Video Frame Rate | 720p@25fps/720p@30fps |
| HD Video Output | 1 Analog HD Output |
| S/N Ratio | >62 dB |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or Less (Non-Condensation) |
|---|---|
| Power Supply | 12 V Dc±15% |
| Power Consumption | Max. 4 W |
| IR Range | Up to 20 m |
| Dimensions | ф 89.9 mm × 70.1 mm (3.54" × 2.76") |
| Weight | 250 g (0.55 lb.) |
