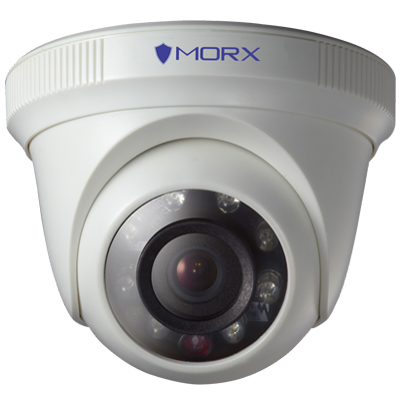

Morx MX TE2F Camera is enabled with color Infrared and it has 1080P resolution through 2 Megapixel High Performance CMOS for beautiful HD images,it transmit signals with coaxial cables, with Uncompressed images and, also the real-time motion picture with no latency. It caputers Image with the size 1920 (H) x1080 (V) and has great feature like 3D anti-noise DNR, anti-reverse digital DWDR and light balancer.With its multiple LEDs and intelligent IR, the camera is able to automatically adjust its shutter speed to the scene and produce clear image under low-light conditions. It is weather proof and also able to work in environments with temperatures ranging from -40°C (104°F) to 60°C (140°F) Humidity: 90% or Less (Non-Condensation).
2 Megapixel High Performance CMOS
Analog HD Output, up to 1080p Resolution
Day/Night Switch
Smart IR
Up to 20 m IR Distance
Switchable TVI/AHD/CVI/CVBS
| Image Sensor | 2MP CMOS Image Sensor |
|---|---|
| Signal System | PAL/NTSC |
| Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps |
| Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux @(F1.2,AGC ON),0 Lux with IR |
| Shutter Time | 1/25 (1/30) s to 1/50,000 s |
| Lens | 3.6 mm, 2.8 mm, 6 mm Fixed Lens |
| Horizontal Field of View | 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm) |
| Lens Mount | M12 |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Synchronization | Internal Synchronization |
| AGC | Low/Middle/High |
|---|---|
| Day/Night Mode | Smart/Color/BW(Black and White) |
| Backlight Compensation | Yes |
| DWDR | Yes |
| Language | English, Chinese |
| Functions | Brightness, Sharpness, DNR, Mirror |
| Video Output | 1 HD Analog Output |
|---|---|
| Switch Button | TVI/AHD/CVI/CVBS |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or Less (Non-Condensation) |
|---|---|
| Power Supply | 12 VDC±15% |
| Power Consumption | Max. 4 W |
| Material | Plastic |
| IR Range | Up to 20 m |
| Dimensions | ф89.9 mm × 70.1 mm (3.54" × 2.76") |
| Weight | Approx. 250 g (0.55 lb.) |
