Access Control and Security in various places like Amusement park, Clubs, Theaters etc. Keyless Hotel Room and Locker Entry Prevention of Counterfeitation Hospital and event management Customer Loyalty Programs
Chip Type:
| HF | UHF |
|---|---|
| I-Code SLIX 13.56 MHz, ISO/IEC 15693 | Alien Higgs-3 EPC Class 1 Gen 2 |
| 1024 bits, organized in 32 blocks of 4 bytes each | EPC 96 bit extendable up to 480 bits User Memory 512 bit |
| Data retention of 50 years | Data retention of 50 years |
| Write endurance 100,000 cycles | Write endurance 100000 cycles |

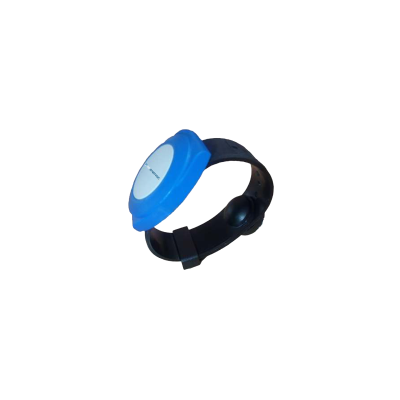

Mechanical:
| Housing Length | 45.1 mm |
|---|---|
| Housing Width | 40.0 mm |
| Housing Thickness | 12.8 mm |
| Total length | 233 mm |
| Strap material | TPU |
| Weight | 26.0±0.5 gm |
Electrical:
| Operating Frequency | 865-868MHz, (902-928MHz also available on request) |
|---|---|
| Operating mode | Passive (battery-less transponder) |
Thermal:
| Storage Temp. | -25°C to +85°C |
|---|---|
| Operating Temp. | -25°C to +85°C |
Options:
| Available with | Other IC type on request |
|---|
