RFG-CD04
UHF Fixed Reader
$81.00 $101.00

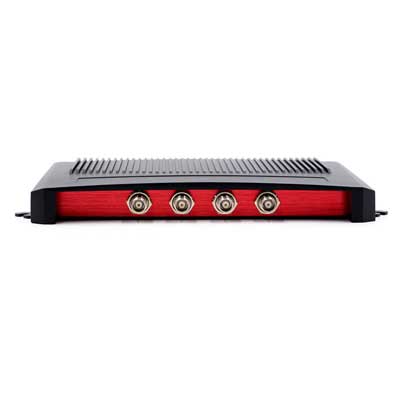

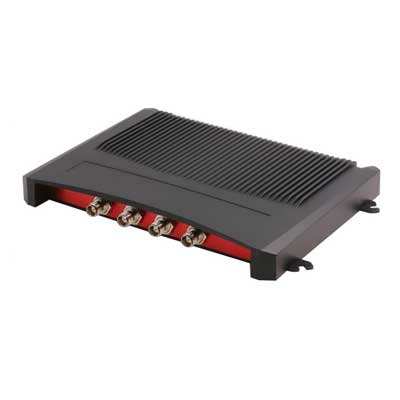

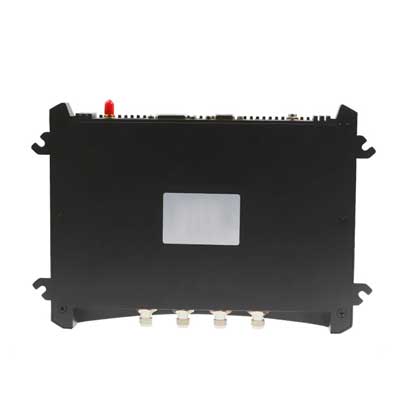

RFG-CD04 is a newly designed fixed UHF RFID reader with 4 port antennas.
RFG-CD04 is a newly designed fixed UHF RFID reader with 4 port antennas. Impinj R2000 chispet supports multiple tags reading up to 700 times/second, 0-15 meters long range reading. Widely used for asset management, inventory/warehouse management, vehicle ETC management, etc.
Inventory Management
Warehouse Management
Race timing Solution
Characteristics
| Engine | Design based on Impinj R2000 chip |
|---|---|
| Frequency | 840-960 MHz (EU standard),902-928MHz (US standard) |
| Protocol | EPC CLASS1 G0 \ ISO18000-6B |
| Work mode | Answer Mode, Real-time-Inventory,Trigger Mode |
| Max inventory speed | 700pcs |
| Reading range | 1-15m (depends on antenna gain) |
| Tag buffer size | 600pcs@max. 128bitsEPC or 180pcs@max.96bitsEPC |
| Inventory | Support EPC and TID inventory |
| Antenna ports | 4 TNC Antenna Ports |
| Interface | Support RS232/RS485, USB(Slave), RJ45 (TCP/IP),/POE/WiFi (optional) |
| Support | RSSI |
| RF power | 33dbm (adjustable) |
| Power supply | 9V DC |
| Current Dissipation | 0.5-1.2A |
| Reader Size | 300*230*130mm |
| Net weight | 1.3kg |
| Operating Temp | -10-+60 °C |
| Storage Temp | -20-+75 °C |
