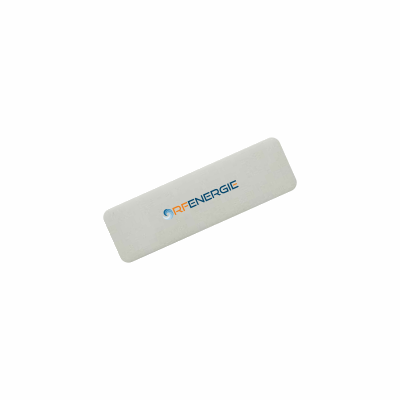

Due to its global tuning it can be used in tracking of garments in the textile rental and dry cleaning throughout the world. The Laundry Tag provides immediate and long term benefits to garment management in process and lifecycle traceability. Automatically reading of garments and provide a durable tag that could survive multiple washings
Chip Type:
Alien Higgs 3 EPC Class 1 Gen 2 |
EPC 96 bit extendable up to 128 bits |
User Memory 128 bit |
Data retention of 50 years |
Write endurance 100.000 cycles |
Mechanical:
Dimension | 54 x 16 x 2.2 mm |
---|---|
Material | Silicon |
Color | White |
Weight | 1.8 g |
Electrical:
Operating Frequency | 860-928MHz |
---|---|
Operating mode | Passive (battery-less transponder) |
Ingress Protection:
Ip67 |
Thermal:
Storage Temp. | -40°C to +120°C, (+220°C for 50 Sec.) |
---|---|
Operating Temp. | -40°C to +85°C |
Options:
Available with | Other IC type and Frequency on request |
---|
