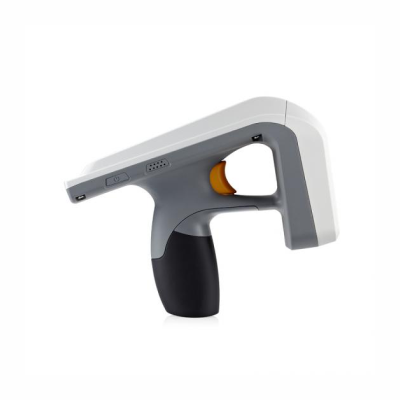

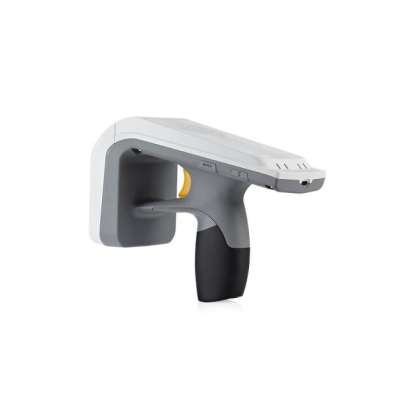

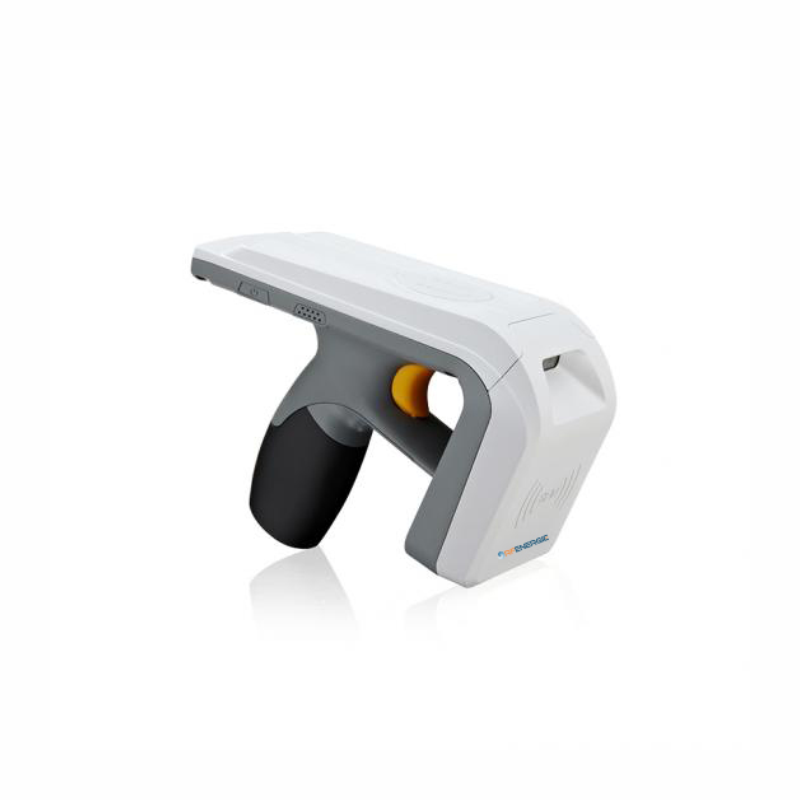

Industrial-grade RFID products have the disadvantages of larger size, higher cost, and higher price.The low-cost, portable UHF RFID reader/writer designed by Hopeland can be used on Android smartphones with USB OTG function.This turns the mobile phone used daily into a small UHF handheld.It can read UHF RFID tags from 8m to 10m away, which is mainly used by daily consumers to identify products containing UHF RFID anti-counterfeiting tags or to perform product traceability inquiries on other products.Relying on the control of the main processor in the smart phone and the friendly screen display function, it can completely change the disadvantages of the existing handheld UHF reading devices that are large, bulky and expensive..
Flexible working with most Android OS devices
Imp injIndy R2000 chipset brings strong prime mover
5000 mAh large battery capacity supports 8 hours continue working ability
Humanist design with hand grip ergonomic for comfortable
Various communication transfer method options match various applications
Widely used in ITS / Smart Grid , execution inspection, ware housing & logistic, Smart retail
| Bluetooth | Bluetooth V2.1 + EDR/V3.0 + HS / 4.1 communication distance is notless than 10m |
|---|
| Air Protocols | ISO / IEC 18000-6B , ISO / IEC 18000 - 6C / EPC C1G2 ，C2GEN2 optional |
|---|---|
| Reading Range | 3~10m (According to Tag & Environment) |
| RF output | 0-30dBm (±1dBm) adjustable |
| Antenna | 0-30dBm (±1dBm) adjustable |
| Programming Function | 1* 4dBi circular |
| Programming Function | match reading / dat filter RFID - temperature & humidity sensor data acquisition customizable |
| Dimensions (L x W x H) | 130 mm (L ) * 8 3.5 mm ( W )* 176 mm ( H) |
|---|---|
| Net . weight | 0.4 Kg |
| User Input | Function Button , Trigger , Blue tooth Button , Power Button |
| Notification | Indicator LED , Speaker |
| Indicators | Bluetooth Indicator, Power Indicator , Mode Indicator, Status Indicator |
| External interface | USB Type - C |
| Dust & Water Proof | IP5 3 |
| Storage Temp . | - 30℃〜+6 5℃ |
| Operating Temp . | - 20℃〜+55℃ |
| Humidity | 5% RH〜9 5% RH (non - condensing) |
| Drop Test | 1.2 M Drop to concrete |
| Main Battery (Replaceable) | DC 5V adapter, follow local standards |
|---|---|
| Battery Supply | 3.7V 5000 mAh Li-ion battery |
| Power Consumption | Working continuously for more than 8 hours . |
| Power Adapter | Power Adapter : DC 5V adapter, follow local standards |
|---|---|
| Communication cable | USB communication cable |
