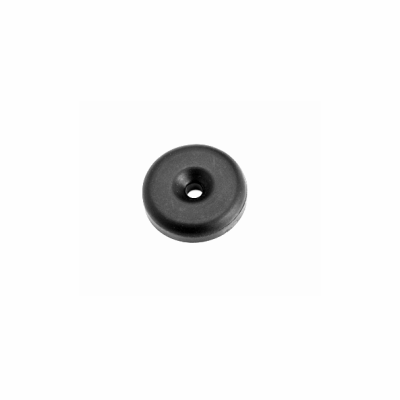

Specially tuned for metal application thus can be used in variety of applications having metallic environment. It has been widely used in supply chain, service industries, distribution logistics and manufacturing companies to identify goods & objects in an industrial environment. Suitable for factory floor manufacturing applications because of rugged construction (IP Rating).
Chip Type:
| Alien Higgs 3 EPC Class 1 Gen 2 |
| EPC 96 bit extendable up to 480 bits |
| Data retention of 50 years |
| Write endurance 100,000 cycle |
Mechanical:
| Outer Dia. | 34mm |
|---|---|
| Hole Dia. | 5.6mm |
| Thickness | 8mm |
| Material | PA6/ABS |
| Colour | Black |
| Weight | 7.3 g |
Electrical:
| Operating Frequency | 865 – 868Mhz, (902 – 928Mhz is also available on request) |
|---|---|
| Operating mode | Passive (battery-less transponder) |
Ingress Protection:
| Ip68 |
Thermal:
| Storage Temp. | -40°C to +85°C |
|---|---|
| Operating Temp. | -40°C to +85°C |
Options:
| Available with | Other IC type on request |
|---|---|
| Other plastic material and colours |
