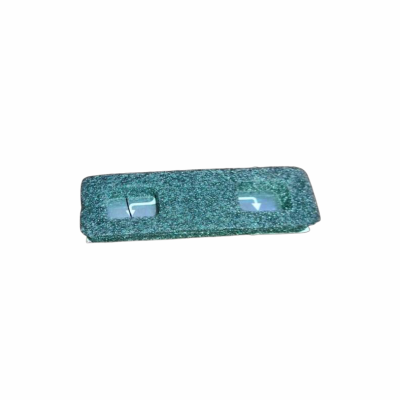

UHF RFG (Bib Tag) is manufactured using Smartrac Dogbone dry inlay and designed for marathon racing solutions. It offers excellent performance in demanding environments. (Bib Tag) has good tolerance to the detuning effect of high dielectric materials, providing effective global performance even on difficult-to-tag materials. They are available with the NXP UCODE G2iM chip with very good memory blocks.
PHYSICAL CHARACTERISTICS:
| Inlay size | 97 mm X 27 mm |
|---|---|
| Label size | 97 mm X 27 mm |
| Adhesive | 3M |
| Delivery format | Single |
| No. of labels/Reel | N/A |
| Pitch | N/A |
| Core Inner diameter | N/A |
| Available face material | PET/Paper |
ENVIRONMENTAL RESISTANCES:
| Operating temp. | -40 °C to 85 °C -40 °F to 185 °F |
|---|---|
| Relative humidity | 5-95% Non-Condensing |
| UV Resistant | No |
PERSONALIZATION OPTIONS:
| Encoding | Possible |
|---|---|
| Customized printing | Possible |
RFID SPECIfiCATIONS:
| Operating mode | Passive |
|---|---|
| Frequency Band | UHF 860 - 960 MHz |
| RF protocol | ISO 18000-6C, EPC Class 1 Gen 2 |
| IC | NXP UCODE G2iM |
| Functionality | Read/Write |
| EPC memory | 256 bits/ up to 448 bit |
| TID memory | 96 bit |
| User memory | 640 bit |
| Web Width | 100 mm / 3.937 in |
| Access password | 32 bit |
| Kill password | 32 bit |
| Write cycle endurance | 2,00,000 cycles |
| Read range | up to 15 meters |
| Tamper proof | N/A |
| RoHs | EU Directive 2011/65/EC and Directive (EU)2015/863 |
