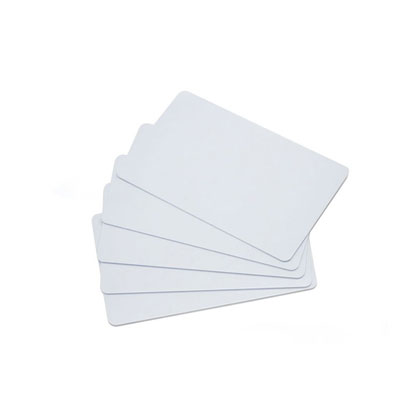

RFG-T10 is a standard UHF white card, which is essentially utilized for access control system, VIP card, e-Ticketing, assets management, parking system, library management, working station management, and supply chain management.
Characteristics
| Frequency | 902MHz~928MHz: ETSI: 865-868MHz |
|---|---|
| Protocol | ISO/IEC 18000-6C EPC global GEN2 Class1 |
| Chip | Alien H3 / Impinj M4 |
| Polarization | Liner Polarization |
| Sensitivity | -17dB -19dB |
| Reading Range | 5-20m (EIRP=30dBm) |
| Writing Range | 3.5m (EIRP=30dBm) |
| EPC Area | 96 to 480bas |
| User Area | 512bits |
| TID Area | 96bits |
| Access Password | 32 bits |
| Kill Password | 32 bits |
| Working Mode | Passive |
| Data Storge | >10years |
| Rewriting | >100000times |
| Housing Material | PVC |
