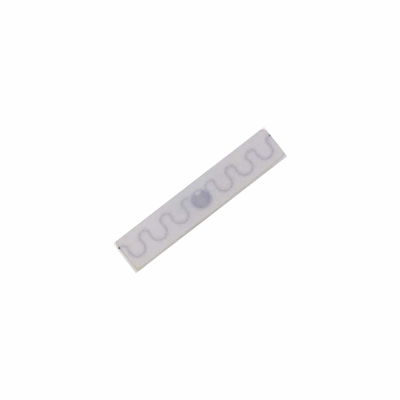

Tags Specification:
Frequency | 865 – 868MHz |
---|---|
IC Type | EPC Class 1 Gen 2 ISO 18000-6C |
Protocol | EPC NXP Ucode 7 |
Memory of IC | TID : 96 Bits EPC : 128 Bits USER : N/A |
Read/Write Endurance | 100,000 Cycles |
Data Retention | 20 Years |
Encasement | Polyester Textile |
Size(mm) | 87 x 16.5 x 2 |
Weight(g) | 0.60 |
Operating Temperature | -40°C to +90°C |
Storage Temperature | -40°C to +90°C |
Ingress Protection | IP67 |
Attachment | Sewing |
Certifications | RoHS, REACH & CE (optional) |
Typical Application | Laundry Tracking, Access & membership system |
Customization Options | Logo Printing, Encoding |
