RD-30
Wireless video intercom set (compact video handset and outdoor panel)
2.4” color TFT screen
Internal memory of up to 100 photos
Lock control
Camera angle 120°
First impression
Slinex RD-30 kit consists of a video outdoor panel and portable handset. It has laconic design and perfectly fits into almost any interior, from classic to modern. You should consider purchasing this kit, if your repair is already completed and you have no plans to resume it in the nearest future. As the kit is wireless, you do not have to use any additional cables to connect outdoor panel and handset.
Where to use
The RD-30 kit is ideal for installation in any room, regardless of its purpose. It can be either an apartment or an office building. The RD-30 harmoniously combines functionality, modern design, and affordable price.
The RD-30 has some distinctive features. Let's start with its power. The outdoor panel is powered by LR14 type "C" batteries (2 pieces), but, if needed, you can connect an external + 12V power supply. Handset has long life Li-ion battery charging from the base station.
The second feature is a video camera in the panel with angle 120° and ability to broadcast the video stream at resolution of 320×240. There is a color TFT LCD display on the handset with 2.4 inch screen (4:3 aspect ratio).

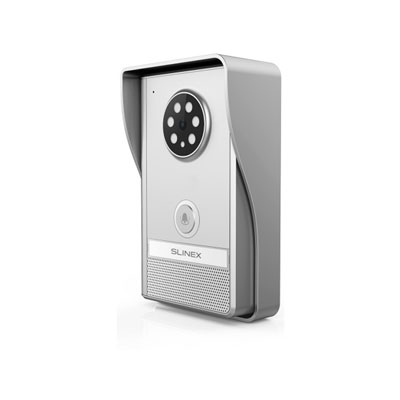

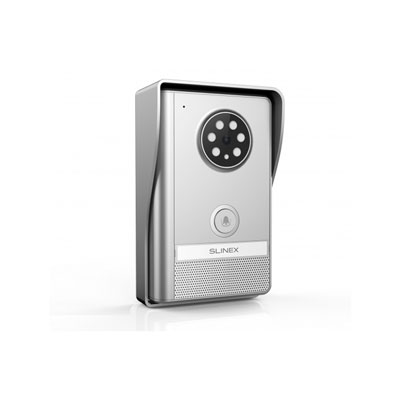

The outdoor panel has an internal memory of 100 snapshots, storing manual or automatic photos of your visitors. The handset can manage mechanical or electromagnetic lock. With one handset only, you can receive calls and view images from 2 connected outdoor panels.
To ensure sufficient image clarity in the darkness, the panel is equipped with LED backligh.
Working range between outdoor panel and handset is about 150 m for the open area.
Operating temperature is from -20 to +55 ° C for outdoor panel and from -10 to +40 ° C for handset. Outdoor panel protection class is IP55.
| Display | 2.4” color TFT screen 4:3 |
|---|---|
| Screen resolution | 320×240 |
| Outdoor panels quantity | 2 |
| Horizontal viewing angle | 120° |
| Memory | Internal, up to 100 photos |
| Minimal illumination | 0,1 Lux, (light-emitting-diode) up to 2,5 m |
| Frequency range | 2.4 – 2.4835 GHz |
| Modulation | GFSK/FSK |
| Power supply outdoor panel | 2 LR14 batteries “C” type, not included |
| Size base station | 80×95×104 mm |
| Size tube | 53×188×26 mm |
| Size outdoor panel | 105×167×50 mm |
| Range of action | Up to 150 m in open areas |
| Power supply tube | 1 Li-ion battery |
| Colors | White Black |
